  1. Catalog

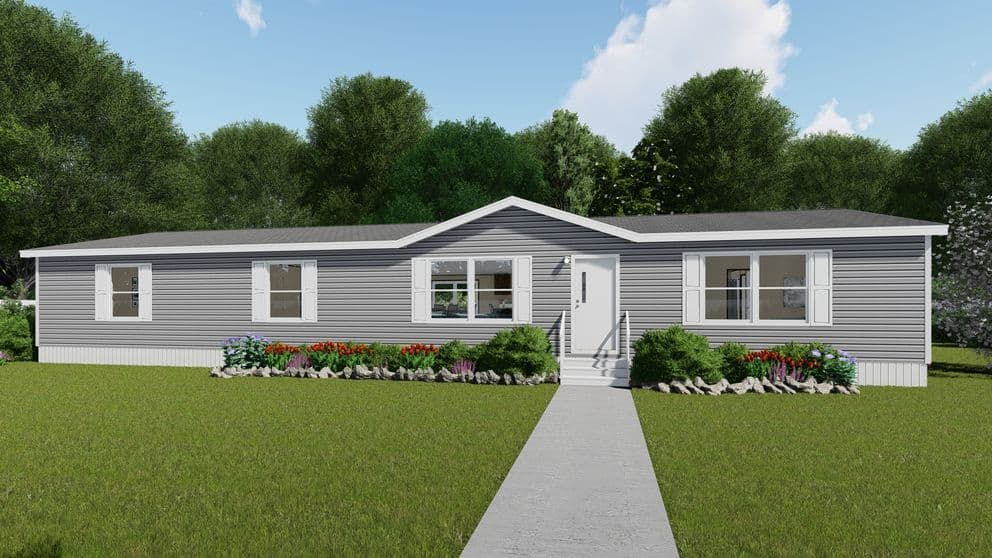

Tru hero home features

TRU series

TRU standard features

Design Options

TRU standard features

Construction

  • - I - Beam: 12” or 10” model specific
  • - Outriggers: 96” spacing
  • - Crossmembers: 96” spacing
  • - Header: (Front/Rear) Flush, not recessed
  • - Axles: Spread (no equalizers) overslung mounted
  • - Brake Axles: Two, except where more are mandatory by state DOT
  • - Hitch Beam: 8” Detachable Hitch
  • - I - Beam: 12” or 10” model specific
  • - Outriggers: 96” spacing
  • - Crossmembers: 96” spacing
  • - Header: (Front/Rear) Flush, not recessed
  • - Axles: Spread (no equalizers) overslung mounted
  • - Brake Axles: Two, except where more are mandatory by state DOT
  • - Hitch Beam: 8” Detachable Hitch

Other

  • - HUD Code
  • - 20 lb. Roof Load Std., 30 psf optional
  • - Wind Zone I Std., Zones II optional
  • - Thermal Zone 3 Standard
  • - HUD Code
  • - 20 lb. Roof Load Std., 30 psf optional
  • - Wind Zone I Std., Zones II optional
  • - Thermal Zone 3 Standard

Construction

  • - Joists: 2x6 / 16” O.C.
  • - Vinyl: Challenger Linoleum by Shaw® throughout home
  • - Decking: 19/32” 4x8 OSB T&G
  • - Joists: 2x6 / 16” O.C.
  • - Vinyl: Challenger Linoleum by Shaw® throughout home
  • - Decking: 19/32” 4x8 OSB T&G

Exterior

  • - Vinyl Siding: Standard
  • - Sheathing: WZ I - Thermoply Structural Sheathing
  • - Exterior Faucet
  • - Shutters: Front Door Side Windows
  • - Shingles: 25 year - 3 tab
  • - Trusses: 24” O.C. spacing
  • - Sheathing: 7/16” OSB
  • - Insulation: Blown Fiberglass
  • - Ceiling: Textured
  • - Ceiling Slope: Vault/Flat Ceiling
  • - Attic Ventilation: Static & Ridge Vents
  • - Vinyl Siding: Standard
  • - Sheathing: WZ I - Thermoply Structural Sheathing
  • - Exterior Faucet
  • - Shutters: Front Door Side Windows
  • - Shingles: 25 year - 3 tab
  • - Trusses: 24” O.C. spacing
  • - Sheathing: 7/16” OSB
  • - Insulation: Blown Fiberglass
  • - Ceiling: Textured
  • - Ceiling Slope: Vault/Flat Ceiling
  • - Attic Ventilation: Static & Ridge Vents

Other

  • - Front door: Steel front door with Storm
  • - Rear door: Out Swing 9-Lite Door
  • - Interior doors: White 6-Panel Door
  • - Windows: LUX Thermal Pane Low E Vinyl, size per prints
  • - Front door: Steel front door with Storm
  • - Rear door: Out Swing 9-Lite Door
  • - Interior doors: White 6-Panel Door
  • - Windows: LUX Thermal Pane Low E Vinyl, size per prints

Other

  • - Water Heater: 40 gallon Rheem® electric + dual element
  • - Kitchen Sink: Stainless Steel, dbl bowl
  • - Lavatory Sinks: Plastic
  • - Faucets: Pfister® Metal Faucets
  • - Master Bath: 54” ABS Plastic Tub
  • - Hall Bath: 54” ABS Plastic Tub
  • - Whole House Water Shut Off
  • - Ice Maker Ready
  • - Water Heater: 40 gallon Rheem® electric + dual element
  • - Kitchen Sink: Stainless Steel, dbl bowl
  • - Lavatory Sinks: Plastic
  • - Faucets: Pfister® Metal Faucets
  • - Master Bath: 54” ABS Plastic Tub
  • - Hall Bath: 54” ABS Plastic Tub
  • - Whole House Water Shut Off
  • - Ice Maker Ready

Mechanical

  • - Heat: Carrier® Electric (gas optional)
  • - Ductwork: Metal duct wrapped with insulation
  • - Thermostat: Ecobee3 Lite Smart Thermostat
  • - Load Center: 200 amp
  • (100 amp allowed when gas option ordered – gas range and gas furnace)
  • - Exterior Receptacles: (1) GFI recept and cover
  • - Interior Receptacles and Switches: White, self contained
  • - Phone Jack(s): None
  • - AC: Conduit
  • - LED Light Bulbs installed
  • - Wire & Brace for Ceiling Fan, LR only
  • - Heat: Carrier® Electric (gas optional)
  • - Ductwork: Metal duct wrapped with insulation
  • - Thermostat: Ecobee3 Lite Smart Thermostat
  • - Load Center: 200 amp
  • (100 amp allowed when gas option ordered – gas range and gas furnace)
  • - Exterior Receptacles: (1) GFI recept and cover
  • - Interior Receptacles and Switches: White, self contained
  • - Phone Jack(s): None
  • - AC: Conduit

Construction

  • - Exterior Wall Construction: 2x4, 16” O.C. spacing
  • - Ext. Wall Height Sidewall 7’-0”, Endwall 7’-0”
  • (combo vault/flat ceiling, per prints)
  • - Interior Wall Construction: 2x3, 24” O.C. spacing (per print)
  • - Wall Coverings: 3/8” paper on gyp
  • - Wall Coverage at Closets: 3/8” gyp, raw
  • - Exterior Wall Construction: 2x4, 16” O.C. spacing
  • - Ext. Wall Height Sidewall 7’-0”, Endwall 7’-0”
  • (combo vault/flat ceiling, per prints)
  • - Interior Wall Construction: 2x3, 24” O.C. spacing (per print)
  • - Wall Coverings: 3/8” paper on gyp
  • - Wall Coverage at Closets: 3/8” gyp, raw

Interior

  • - Cabinets: DuraCraft® (duracraftcabinets.com)
  • - Countertops (All): Wilsonart® Laminant (TRU Select)
  • - Backsplash: None
  • - Closet Shelving: ClosetMaid® – vinyl wrapped metal
  • - Utility Shelving: above washer/dryer
  • - Refrigerator: Frigidaire® 18’ Top Freezer
  • - Range: Frigidaire® 30” Electric/Gas Option
  • - Frigidaire® 24” Dishwasher
  • - Range Hood: 30”, 100 cfm min, vent through sidewall
  • - Cabinets: DuraCraft® (duracraftcabinets.com)
  • - Countertops (All): Wilsonart® Laminant (TRU Select)
  • - Backsplash: None
  • - Closet Shelving: ClosetMaid® – vinyl wrapped metal
  • - Utility Shelving: above washer/dryer
  • - Refrigerator: Frigidaire® 18’ Top Freezer
  • - Range: Frigidaire® 30” Electric/Gas Option
  • - Frigidaire® 24” Dishwasher
  • - Range Hood: 30”, 100 cfm min, vent through sidewall

Other

  • OPTIONS AVAILABLE
  • 1. Upgraded In Swing Rear Door w/ Storm
  • 2. Wind Zone II, OSB not included
  • 3. Ice Dam Protection
  • 4. Gas Option: Range and Furnace only (100 or 200 amp)
  • 5. 30# roof load, 16” O.C. Trusses
  • 6. OSB Wrap
  • 7. Smart Panel Siding
  • OPTIONS AVAILABLE
  • 1. Upgraded In Swing Rear Door w/ Storm
  • 2. Wind Zone II, OSB not included
  • 3. Ice Dam Protection
  • 4. Gas Option: Range and Furnace only (100 or 200 amp)
  • 5. 30# roof load, 16” O.C. Trusses
  • 6. OSB Wrap
  • 7. Smart Panel Siding
